What is the 100KG Satellite Platform

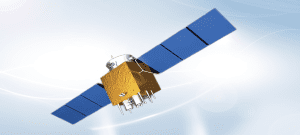

The 100KG satellite platform, engineered by Beijing Zhongke Xinglian Aerospace Technology Co., Ltd., is a state-of-the-art satellite system featuring a Synthetic Aperture Radar (SAR) platform and a high-resolution infrared imaging platform.
Key Features of the 100KG Satellite Platform:
- SAR Imaging: The platform is equipped with advanced SAR technology, enabling high-quality radar imaging capabilities.
- High-Resolution Infrared Imaging: With an infrared resolution better than 3.5 meters and 2K sensitivity, the platform provides unparalleled infrared imaging performance.
- Versatile Applications: Ideal for a wide range of applications including environmental monitoring, disaster management, and earth observation.
Additional Information:
| Mass | 100KG |
|---|---|
| Normal power consumption | 3000–4000W |
| Peak transmit power | 7200W |
| Average power consumption | 1000W |
| Monorail working hours | 2 minutes (adjustable according to platform energy) |
| Average height of track | 517km |
| semi-major axis | 6895.14km |
| Pointing accuracy | Azimuth: better than 0.02 ° (3 σ） Distance direction: better than 0.03 ° (3 σ） |
| Measurement accuracy | Better than 0.01 ° (3 σ， Three axis) |
| Attitude Stability | Better than 0.0005°/s（3σ，Three axis） |
| Side sway ability (rolling) | Not less than ± 50 ° |
| Real time positioning accuracy | Position accuracy: ≤ 5m (three-axis synthesis, 3 σ) Speed accuracy: ≤ 0.01m/s (three-axis synthesis, 3 σ) |
| The positional accuracy of precision ephemeris post-processing | Position accuracy: ≤ 0.5m (three-axis synthesis, 3 σ) Speed accuracy: ≤ 0.01m/s (three-axis synthesis, 3 σ) |
